REGEN Co., Ltd. is at the center of future changes and dreams
PRODUCT
Product Description
Introducing the products of REGEN Co., Ltd.
PRODUCT 04

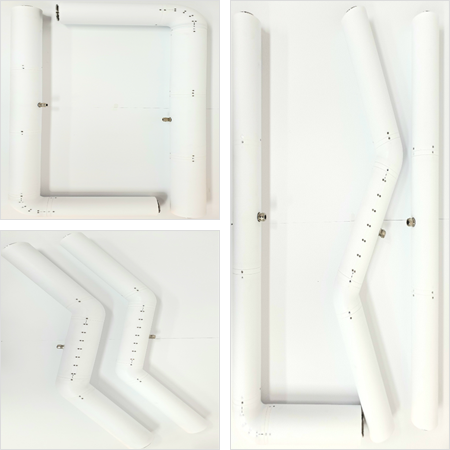

PS Section Heat Pipe
Product Description
The REGEN PSEHP-Series PSEHP Heating Pipe is a high-temperature heating
solution between the pump and scrubber in the semiconductor process, and is a product that
overcomes the safety and structural issues exposed in the existing heat bellows system.
In a situation where increasingly higher temperatures are required due to changes
in future processes and gas amounts, this product was created to overcome not only
the temperature inside the inner pipe, but also the temperature and sealing of the
pipe connection area, which had been vulnerable to temperature.
HPS, Heat piping and PS piping application process
| Process | Detailed process | GAS used | Powder | Temperature |
|---|---|---|---|---|
| CVD | PE-SiN | NH3, N2O, SiH4, TEOS | SiO2, Si(NH2)x | 150~200 |
| Ti-TiN | NH3, TiCL4 | Ti(NH2)Cl | 180~240 | |
| DIFF | ALD SiN | DCS, NH3, F2, N2O | NH4Cl(SiNH2)xCl, SiO2 | 180~200 |
| SiN | NH3, N2O, SiH4, DCS, SiCL4 | NH4Cl(SiNH2)xCl, SiO2 | 180~200 | |
| ETCH | METAL ETCH | BCl3, CHF3, Cl2, HCl, CH4, CF4등 | B2O3, SiO2, SiF4 | 150~180 |
| METAL | WN | WF6, NH3 | NH4F(?) | 180~200 |
